Chip Fuse
HFC32

General Type Chip Fuse(High Rated Voltage)

Features

Line up of Low-profile Chip Fuse with high rated voltage 76Vd.c.
Withstanding for rated current until Max. 12.5A
For Chip Fuse selection, application guide is available.  Please contact Kamaya sales dept. if it is required.
For more details on this product, check the specification on Kamaya website.
AEC-Q200 qualified.

Certified UL, c-UL.  File No. : E176847

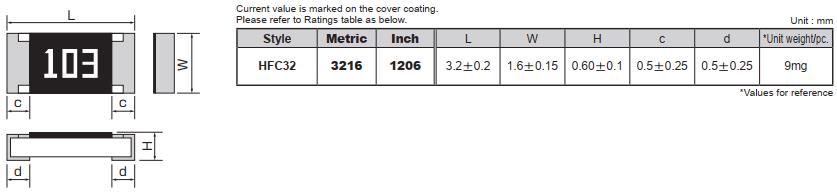

Dimensions

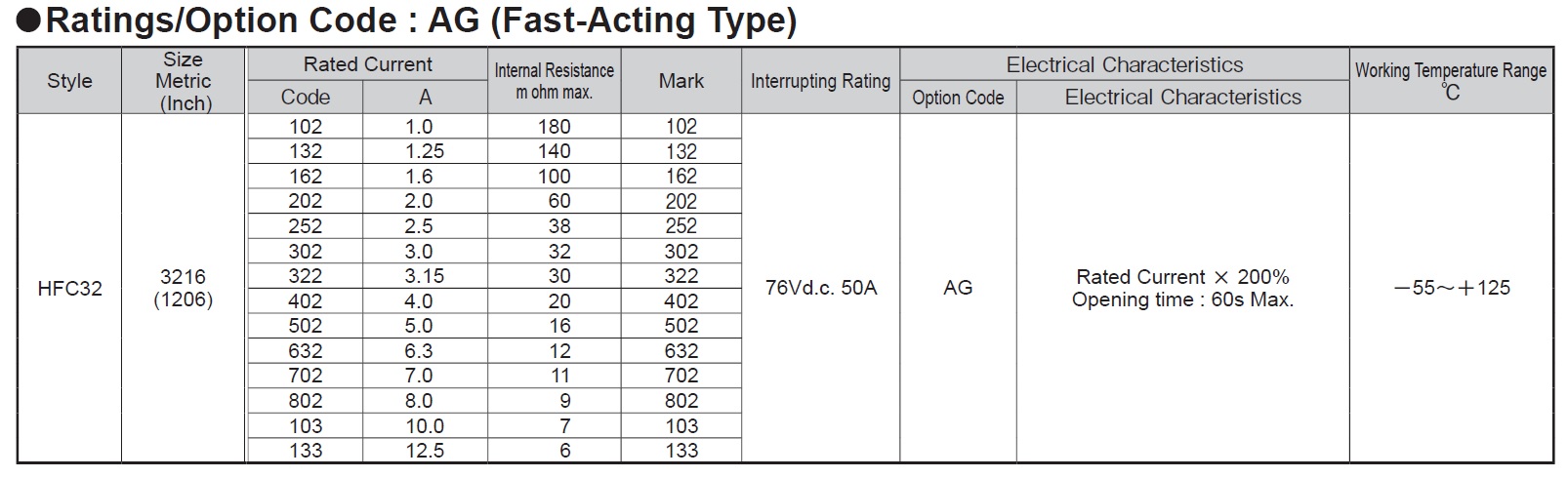

Ratings

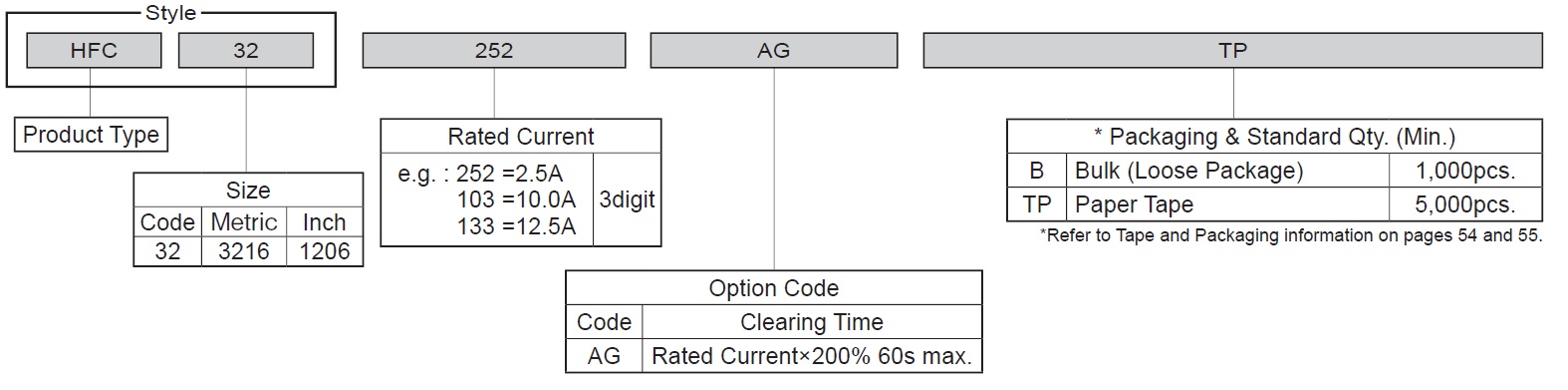

Part Number Description
