Chip Resistors
MLP

Current Sensing Chip Resistor(Metal Plate)

Features

0805inch size : 1W 2512inch size: 2W.
Please refer to Specification (Reference) at the Website to confirm the specification for more detail.
AEC-Q200 qualified.

Dimensions

Ratings

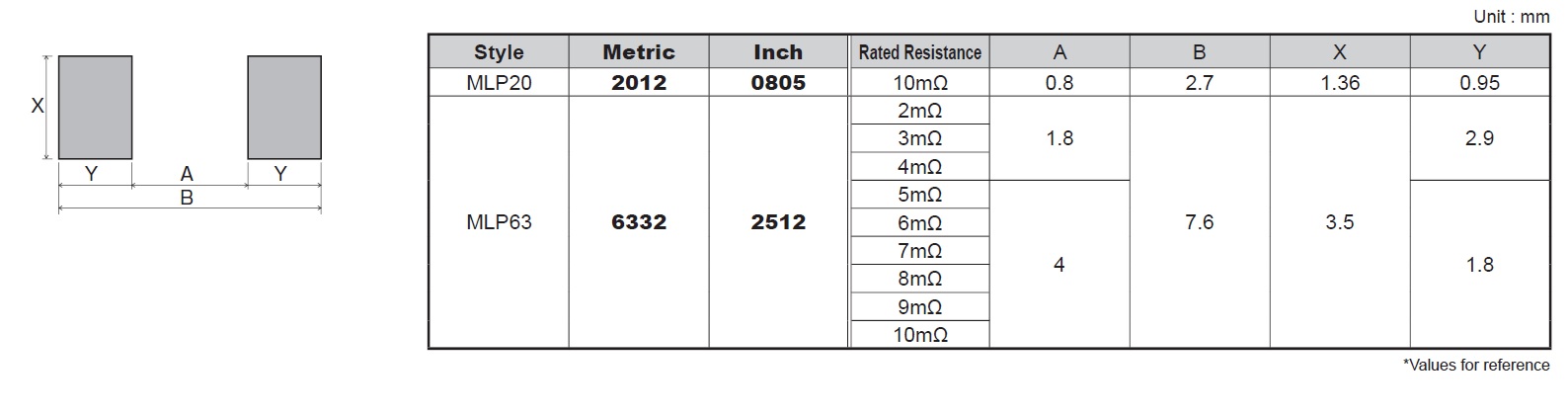

Recommended Land Pattern



Part Number Description

Precaution

Resistance value changed by the soldering conditions. Please confirm the resistance value change for designing.
