Chip Resistors
RLP

Current Sensing Chip Resistor(Metal Plate)

Features

Line up of 0603, 0805, 1206 & 2512inch.
Suitable for current sensing of battery pack.
Please refer to Specification (Reference) at the Website to confirm the specification for more detail.
AEC-Q200 qualified.

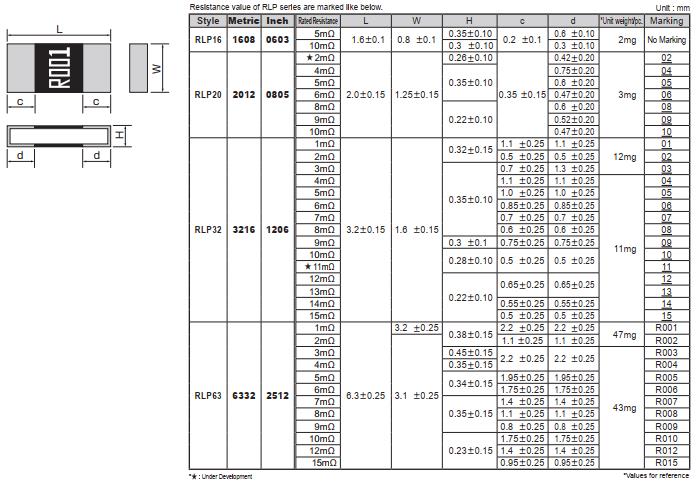

Dimensions

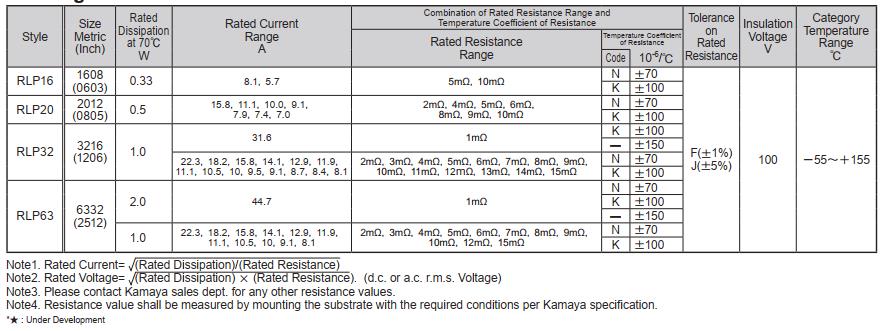

Ratings

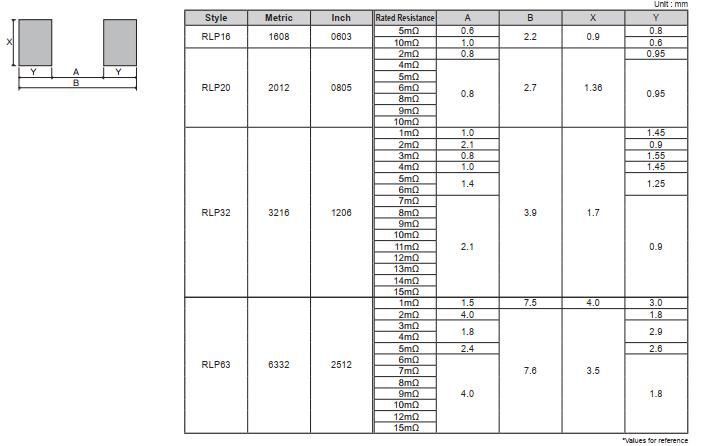

Recommended Land Pattern

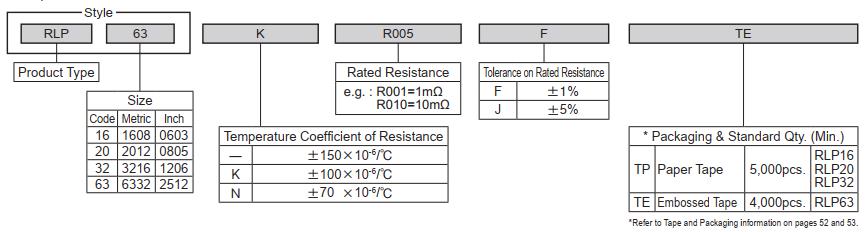

Part Number Description

Precaution

Resistance value changed by the soldering conditions. Please confirm the resistance value change for designing.
