Chip Resistors
RLC

Low Ohmic Chip Resistor

Features

Most suitable for a detection of current in power source circuits, motor circuits, etc.
Please refer to Specification (Reference) at the Website to confirm the specification for more detail.
AEC-Q200 qualified.

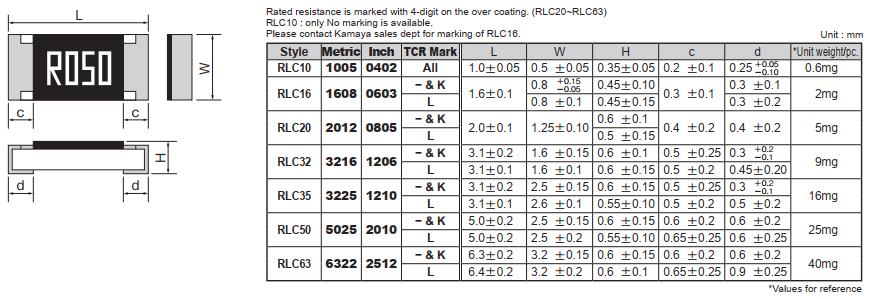

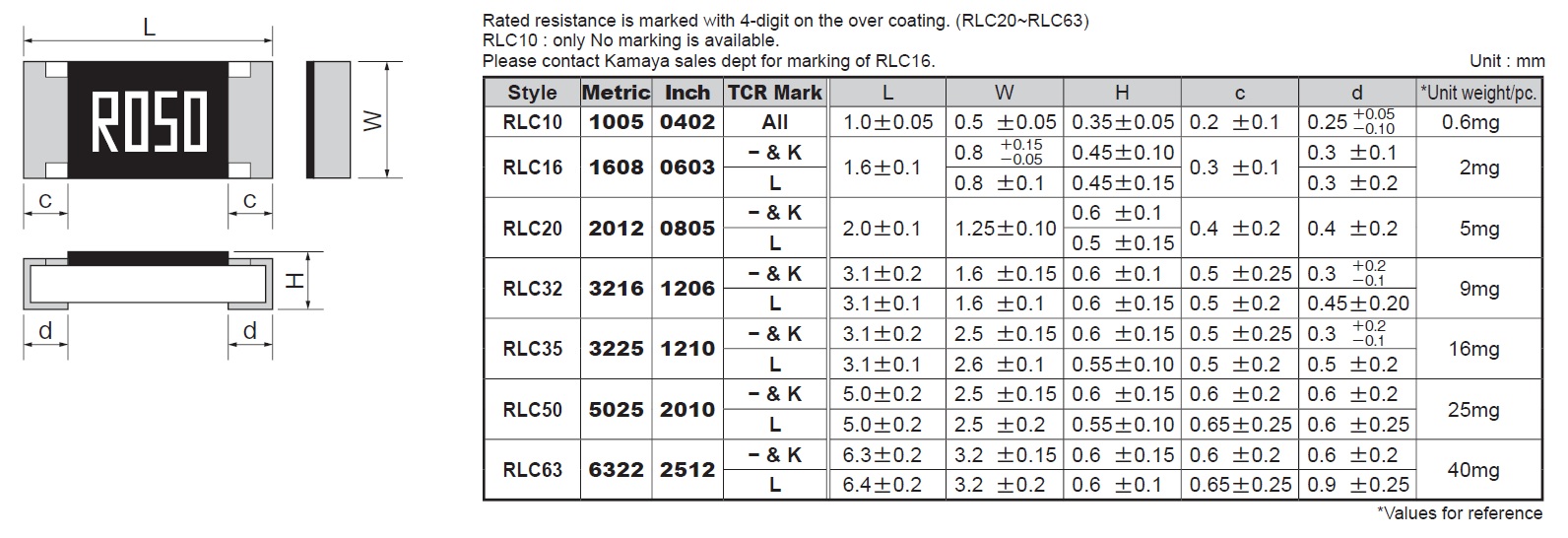

Dimensions

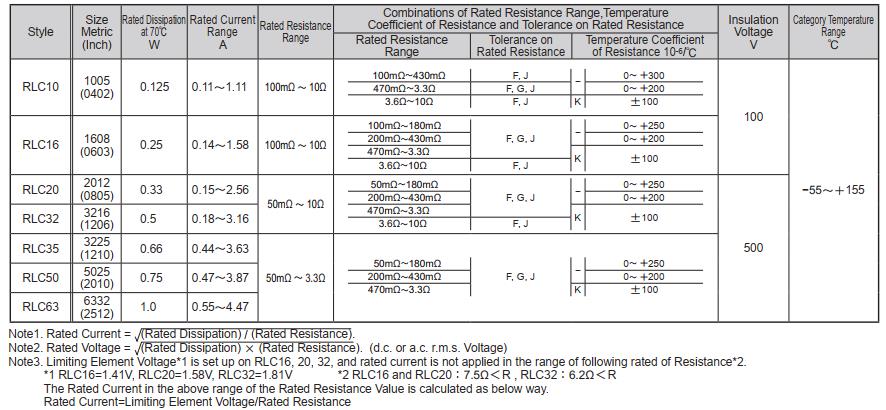

Ratings:TCR Mark = - & K

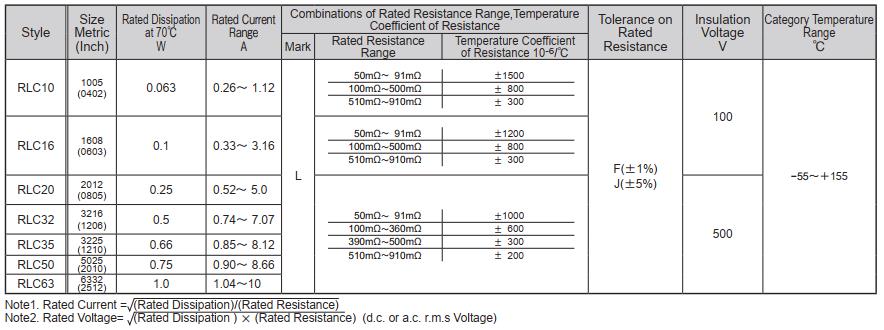

Ratings:TCR Mark = L

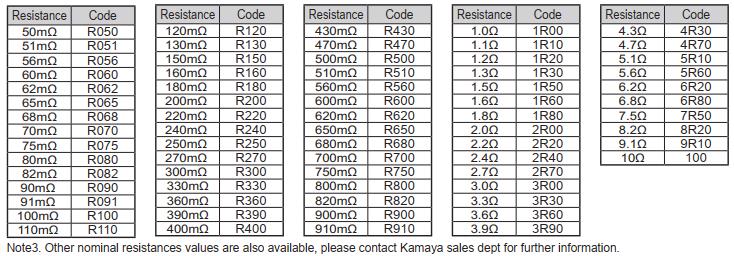

Rated Resistance

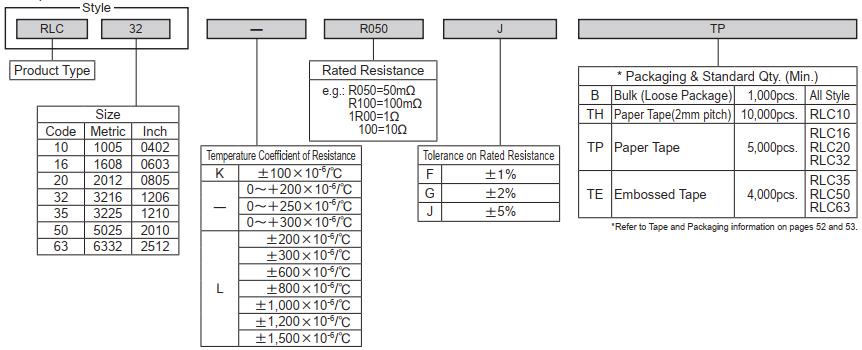

Part Number Description
